This

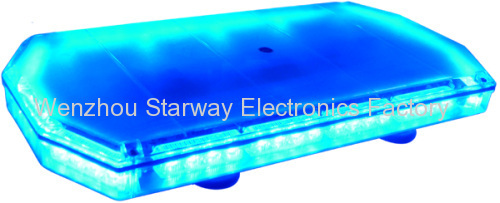

LED Mini Light bar is made of a lot of high power LED lights. They have advantage with high brightness and low power waste and long use life etc. This
LED mini light bar have good-looking shape and stronger against impulse capability, and it not easy to lose color or get aged. This
LED mini light bar have 15 modes function offer to choose, and have power cut off memory function. It can be installed on all kinds of special vehicles.
2. Features
1). 100,000 hour life span
2). Weather-proof housing
3). Built in flash patterns synchronized
4). Alternately flash Cigarette light plug can be installed
5). Magnetic brackets attached
6). 20 feet of cable provided
7). Powered by 12V cigarette plug
8). Perfect for police fire EMS and construction vehicle lighting and airforce .
3. Specifiation
Work voltage | DC12V/DC24V |
The max. lightened bound | > 800LX |
Environment | -40 ℃~ +50 ℃ |
Waste currant: | 6A(max) |
Material | PC Dome |
Color | Red/Blue/Amber/Clear |
4.Packing Information:
Packing Size | 655x370x200mm |
Qty/CTN | 1PCS |
5. Flash mode
| FLASH MODE | Remark | | FLASH MODE | Remark |
1 | ● ● ¤ ¤ ¤ ¤ ● ● | Double | 9 | ¤ ● ¤ ● ● ¤ ● ¤ | Quad (separate) |
2 | ● ● ¤ ¤ ¤ ¤ ● ● | Quad | 10 | ● ● ● ¤ 7 5 3 1 ● ● ● ● 8 6 4 2 | Jump |
3 | ● ● ¤ ¤ ¤ ¤ ● ● | Quint |
4 | ●● ¤ ¤ ¤ ¤ ● ● | Mega | 11 | ¤ ¤ ¤ ¤ ● ● ● ● | Relay |
5 | ●● ¤ ¤ ¤ ¤ ● ● | Ultra | 12 | ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ | Speedup (all) |
6 | ●● ¤ ¤ ¤ ¤ ● ● | Single-Quad | 13 | ¤→●→●→● ●←●←●←● | Turn left |
7 | ●● ¤ ¤ ¤ ¤ ● ● | Single H/L | 14 | ●←●←●←● ¤→●→●→● | Turn right |
8 | ●←●←●←¤ ●←●←●←¤ | Turn aside | 15 | ● ● ● ● ¤ ¤ ¤ ¤ | Speedup (split) |
Note: ¤flash, ●dark, ←turn left, →turn right.
6. Installation of the warning light bar
1). Put light bar on the back of the vehicle, base on the vehicle's size, adjusting the frame to fit it, And insure the magnetic plinths are all firm attracted the vehicle.
2). After installed, firstly the two main electrical wires should be connected with auto's storage battery (red to +, black to -), secondly firm plug the controller to the light bar. Then it can to work..(Re. Fig.1)
Fig.1. Connection of the light bar and controller
3). After checking, then turn on the switch of controller, and choose the flash mode, the light will beginning to work.
7. Controller
Switch A means left lane light control; switch B means right lane light control; switch C means flasher control.
Note:
If the light can not work, please check the main fuse inside the cigar plug.
