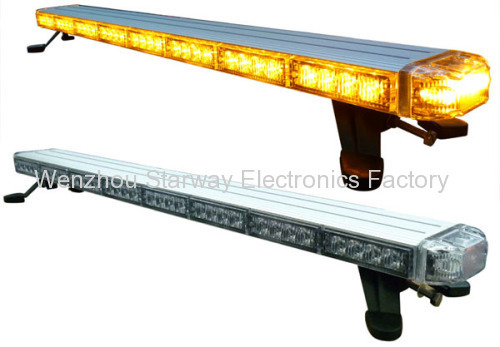

LTF-8M905 LED lightbar for Police ,Fire,Emergency, Ambulance and Special Vehicles
1. Summary
This product adopts double-layer aluminum alloy boards structure, which has distinct outline stronger percussion-resistant capability, and is not easy to lose color and get aged. Moreover, the light bar has good sealing and waterproof. A lot of LED lights are distributed shapely and use high power LED lights let it give out strong flash light from each direction. And it has advantage with high brightness and low power waste. It has 12 kinds flash pattern and tree modes direction lights. It can be installed on all kinds of special vehicles. Even in extremely complicated, circumstances, it can transmit emergency signal correctly.
2. Specifiation:
Work voltage | DC12V |
The max. lightened bound | > 800LX |
Environment | -40 ℃~ +50 ℃ |
Waste currant | 6.3A(max) |
Light type | LEDS |
Total power | 75.6W |
Dome | PC |
Base | Aluminum alloy |
The length of the light bar | 1.04m |
3.Installation of the warning light bar

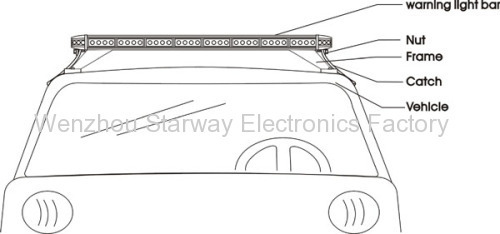

a)Put light bar on the vehicle's roof, base on the vehicle's size, adjusting the frame to fit it, And Then let the catches button the rainwater line on both side of the vehicle and screwing the nut by wrench. (see. Figure 1 below)

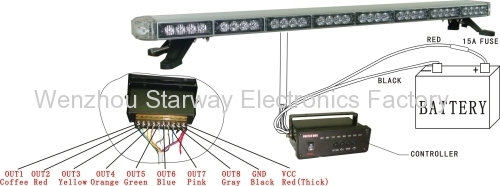

b)After installed, connect the wires to the controller, left to right is output 1, output 2, output 3, output 4, output 5, output 6, output 7, output 8, ground, +12V. Connect the output1-8 to the lightbar's eight groups wires (negative), connect the ground to the battery's negative, connect the +12V both to the battery's positive and lightbar's +12V. ( see: figure 2 )
c)Turn on the controller power switch, then press the pattern or direction button to work the light bar.
Figure 1. INSTALLATION OF THE LIGHT BAR
Figure 2. WIRING
Note: If the light bar didn't work, please check the main fuse.
Workshop:
Applications:
Police, Fire, The Automotive, Police, Fire, Motorcycle, Construction,Emergency Vehicle and School Bus Industries
